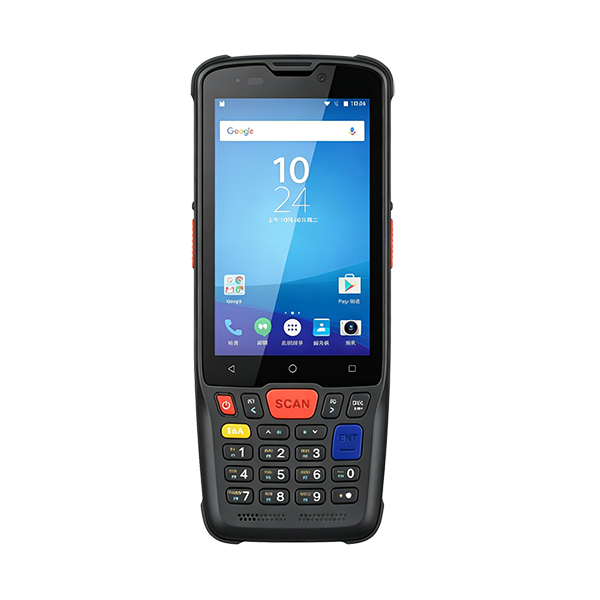

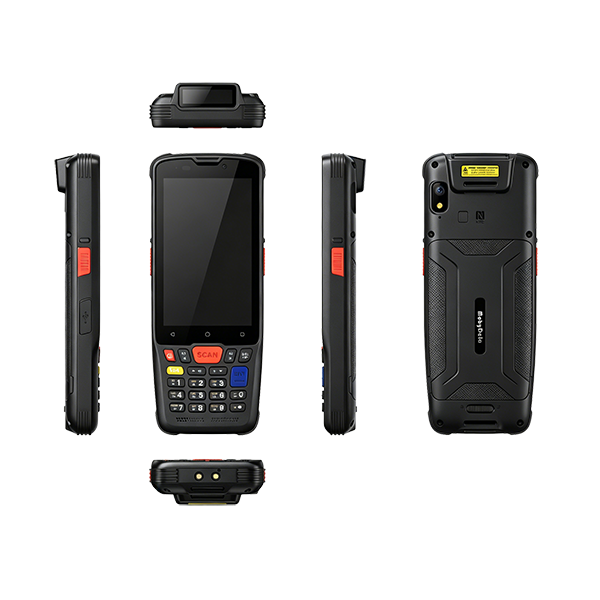

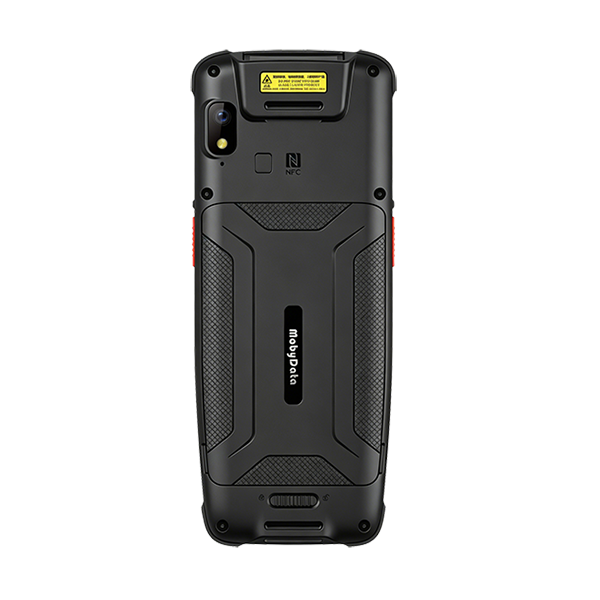

OA68 Digital Keyboard

a) Android 14, support 4G communication, custom Wifi roaming performance

b) 1.3 million BSI High sensitivity scan engine

c) 1 meter height falls 1000 times, the LCD is not damaged

d) 5000mAh large capacity replaceable battery, 30 hours of continuous work

e) SCAN and ENT keys that never wear out and fade

f) Antutu scored 220,000 points (Some models)

g)Mobydata software service is supported

Physical Specifications
Weight	279g(With battery)
Dimension	165.86mmx67mmx19.22mm
Keypad	20-key numeric keyboard Left/right scan Back, home, toggle touch keys

Main Parameters
LCD	4.0 inch, 800*480
TP	IPS GFF capacitive screen, multi-touch
Extend Slot	SIM card slot: Single card, Nano SIM1+TF1
Extend Slot	SD card slot: MicroSD, up to 256GB
Main camera	Auto focus 8Mega, flash
Front camera	Fixed focal length, 5Mega (option)

Power and Charging
USB	USB 2.0 Type-C charging data transmission

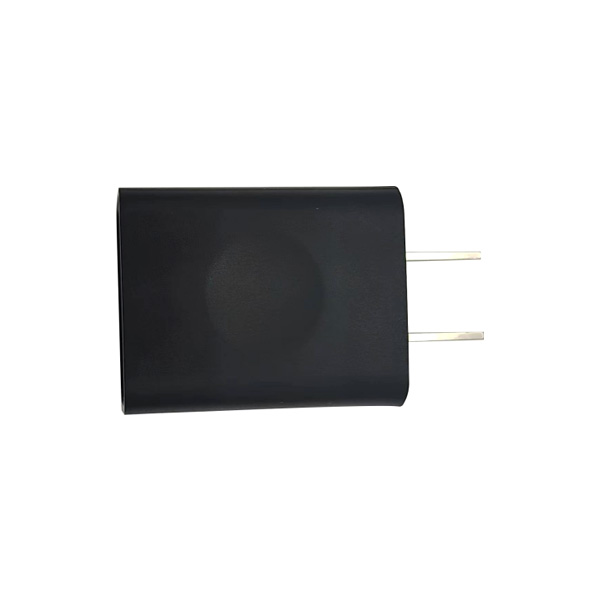

Adapter	5V2A 100~240V AC 50/60HZ, Plug: National standard
Battery	5000 mAh min, Replaceable
Charging	<3.5h
Operation	>30 hours
Battery life	500 cycle> 80%

Environment
IP	IP65
Drop	1.5m steel floor fell 30 times, 1.8m steel floor fell 60 times (with silicone sleeve)
Tumble	0.5m steel plate falls 2000 times, 0.5m steel plate roller 3000 times (with silicone sleeve)
Storage Temperature	-30C to 70C
Operation Temperature	-25°C ~ +55°C
Humidity	5%-95% non-condensing
Charging Temp	0°C -35°C
ESD	8K/15K

Wireless
Bluetooth	BLE V5.0
WLAN	802.11.a/b/g/n/ac WiFi dual band radio; IPv4； IPv6
GPS	GPS/Glonass/Galileo/Beidou,Assisted GPS
NFC	Yes
WWAN	2G/3G/4G full Netcom
VOLTE	Yes
CA	LTE CAT6, CA B1/3/7/40/41，Downlink 300Mbps

Gift Box
Device, QSG, Adapter, USB cable，Battery

Optional Accessory
Single host and battery charger, 4-slot device charger, 4 battery charger, Spare battery, silicon rubber case, wrist strap, Shoulder belt
