a) Easy integration

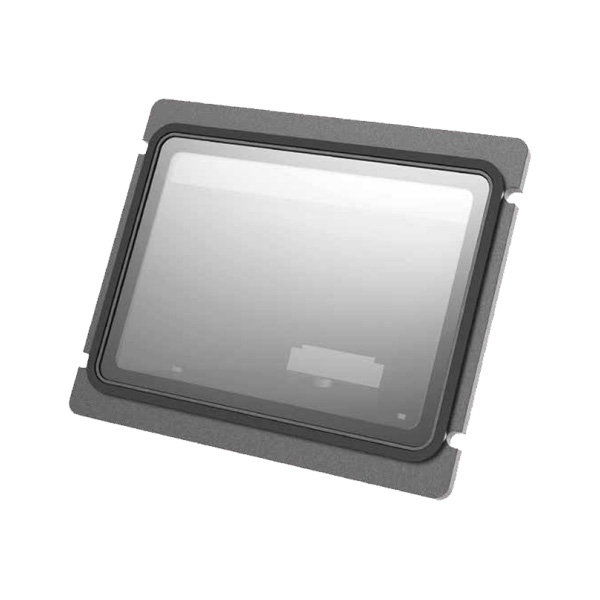

b) Extra-large window with wide-angle sensor
c) Auto-sensing image capture
d) Supports motion reading at up to 6 m/s
e) Multi‑language barcode data transmission
f) Hyper‑scan: fast & sensitive
| Physical Specifications | ||
| Dimension | 143mm x 119mm x 67mm | |
| Weight | 209g | |
| Voltage | 5 VDC | |
| Working Current | 500mA (Operating) | |
| Performance Characteristics | ||
| Image (Pixels) | 1280p (H) x 1080p (V) | |
| Light Source | Illumination: 617nm RED LED | |
| Field of View | 50° (H) x 35° (V) | |
| Roll / Pitch / Yaw | 360°, ±65°, ±60° | |
| Motion Tolerances | up to 600 cm per second | |
| Print Contrast | 25% minimum reflective difference | |
| Interfaces Supported | USB、RS232 | |
| Minimum Resolution | 4 mil Code39 | |
| Symbology Decode Capability | 2-D | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,etc. |
| 1-D | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. | |
| Decode Ranges | Code 39 (5mil) | 0mm-60mm |
| 100% UPC-A(13mil) | 0mm-150mm | |
| User Environment | ||
| Operating Temperature | 0℃~50℃ | |
| Storage Temperature | -40℃~70℃ | |
| Humidity | 0% to95% relative humidity,non-condensing | |
| Shock Specifications | Drop resistant up to 1.5m | |
| Ambient Light Immunity | 100 000Lux | |
