a) Transportation – warehousing and logistics
b) High-volume label printing environments
c) Retail industries – jewelry, fashion
d) Convenience stores and retail shops
a) MCC3 is developed on a completely new architectural platform, combining years of design experience with advanced technology.
b) Ultra-fast response: starts printing within 2 seconds of receiving command; capable of continuously printing 1,000 labels on a full battery charge.
b) Supports remote firmware updates.
d) Compatible with Android, iOS, Windows, and many other platforms.
e) Printer management is supported through the Management Printer application.
f) Comprehensive compatibility – supports printing via PDA, mini apps, PC, USB, and Bluetooth
g) Stable operation – no line skipping, no paper jams, ensuring smooth and time-saving printing.
h) Intelligent fast charging – Supercharge technology enables ultra-fast charging; fully charges in just 2.5 hours.

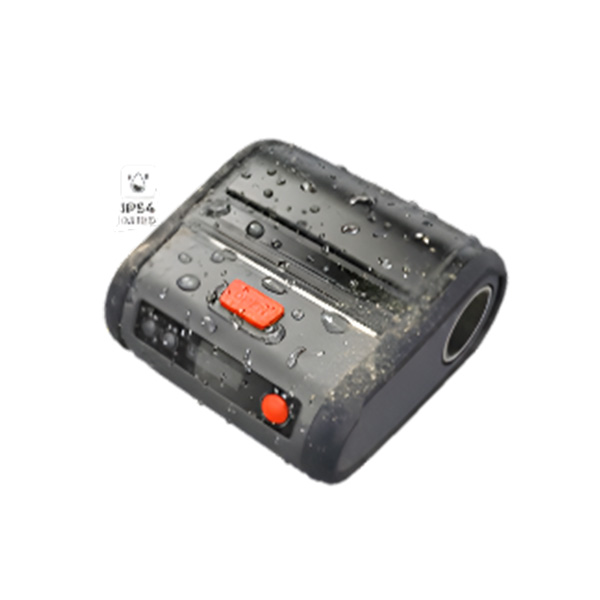

i) High protection rating of IP54 for dust and water resistance; withstands drops from up to 1.5 meters; operates reliably in rainy and windy environments.

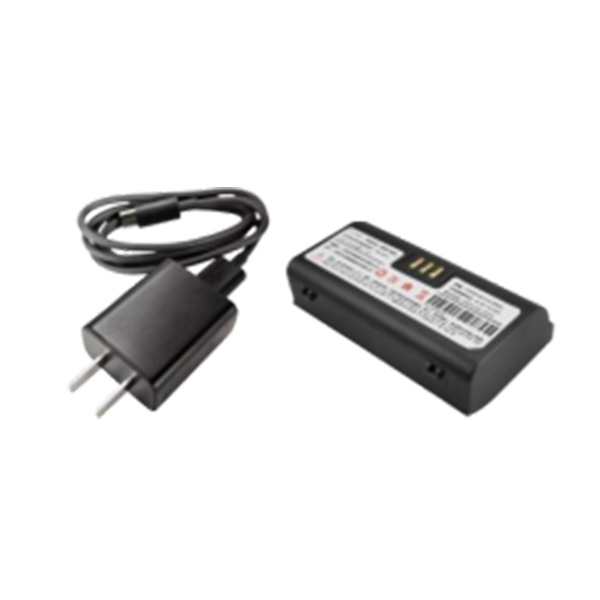

a) Standard: Power adapter and USB Type-C cable included.

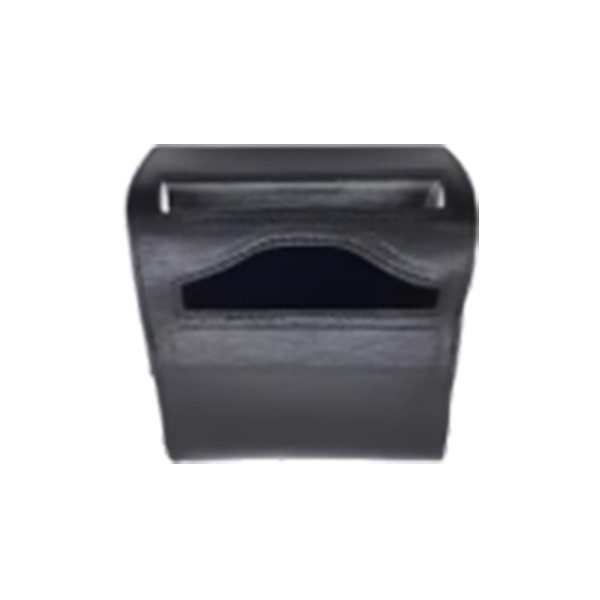

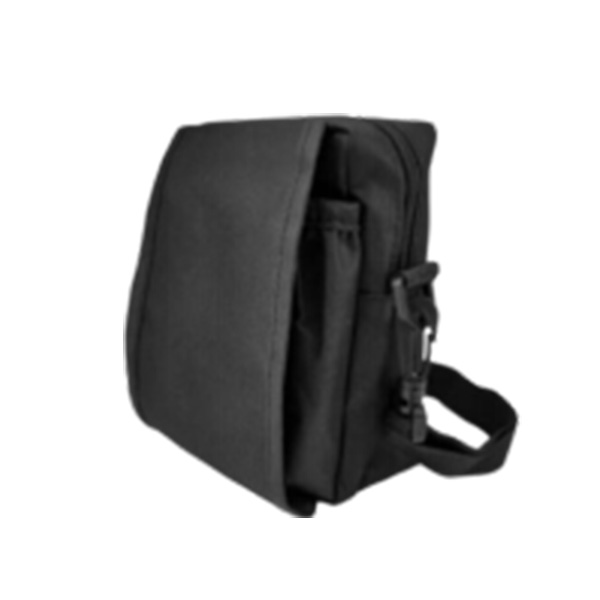

b) Optional: Belt case and backup battery pack.
Dimensions (W × D × H) | 110 × 108 × 60 mm |
Weight | 350 g (with battery without paper roll) |
External NAND Flash | 128 MB |
External SPI RAM | 8 MB |
Printing Method | Direct thermal printing |
Resolution | 203 dpi |
Paper Width | Adjustable between 25 mm – 80 mm |
Max Paper Roll | ≤ Ø50 mm |
Paper Type | Thermal receipt paper / Thermal label paper |
Paper Thickness | 50 – 180 μm (min 0.05 – max 0.18 mm) |
Printable Line Width | 75 mm (24 Chinese characters per line or 48 English characters per line, using 24-dot high font) |
Printale Label Length | ≥ 250 mm ( at 12.5% print density) |
Printing Speed (High-Speed Mode – Default) | 90 mm/s (at 12.5% print density, default setting) |
Printing Speed (Standard Mode) | 65 mm/s (at 12.5% print density) |
Printing Speed (High- Quality Mode) | 40 mm/s (at 12.5% print density) |
Print Head Life | 150 km (at ≤ 12.5% print density) / 150 million pulses per dot (at 25 °C) |
Black Mark Positioning | Dual black mark detection, compatible with various paper widths |
Label Positioning | Transmissive + Reflective sensors |

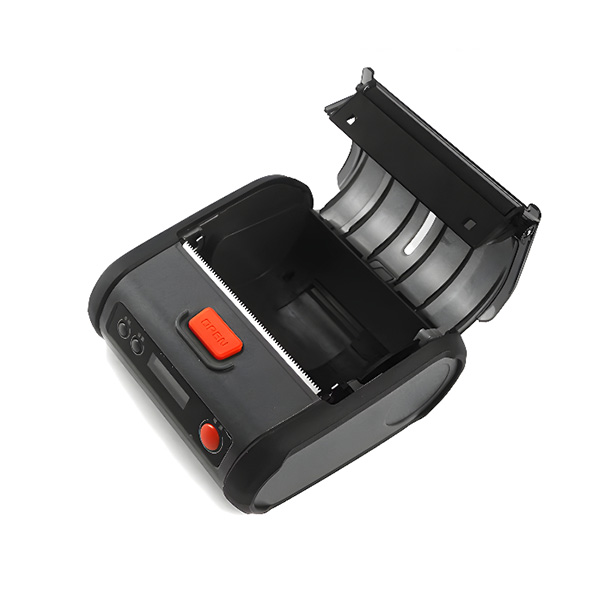

Paper Loading Method | Clamshell design (easy paper loading) |
Error Detection | Paper-out detection, low battery |
| Status Indication | OLED display showing communication mode, printing status, paper-out, cover- open, low battery, and sleep mode |
Sensors | Paper out, cover open, temperature, power, charging status |
Interfaces (Wired / Wireless) | USB Type-C 2.0 / Dual-Mode Bluetooth 2.1 + 4.0 (BLE) |
Power Supply | 100–240 V AC, 0.5 A (50/60 Hz) 5 V 1A |
Battery | 14.8Wh (2000mAh) /7.4 V rechargeable & removable Li-ion battery |
Standby Time | 100-120 hours |
Charging Time | Approx. 2.5 hours |
Charging Method | In-device charging |
Operating Temperature | −20 °C to +50 °C |
Storage Temperature | −20 °C to +70 °C |
Operating Humidity | 10% – 90% RH (non-condensing) |
Storage Humidity | 5% – 95% RH (non-condensing) |
| Protection Rating | IP54 dust & splash resistant GB 4208 2008 |
Drop tested 1.5m / 1.8m (with case) | |
500 tumbles from 0.5m | |
Support System | Supports Windows, Android and IOS iPhone 4s, iPad 3, iPod 4, and later models |
Android (Mobile Platform) | Supported; provides Google standard SDK and API interface (compatible with Android 2.0 and above; versions below 2.0 not supported) |
Printable Content | English, Russian, Arabic, Thai, and other languages; Simplified and Traditional Chinese, Japanese, Korean, numbers, various symbols, graphics, and curves |
| Image Printing | Supports printing JPG, BMP, PDF, and other image formats via SDK |
1D Barcodes | CodaBar, Code39, Code128, Code93, ITF, EAN-8, EAN-13, UPC-A, UPC-E |
2D Barcodes | QR Code, PDF417, DataMatrix |
Command Sets | ESC/POS Compatible, CPCL Compatible |
Character Encoding | GBK, BIG5, Unicode (UTF-8) |
Built-in Vector Fonts | Terminus, Source Han Serif, Source Han Sans, etc. |
Remote Firmware Upgrade | Support |
Remote Software Management | Support |

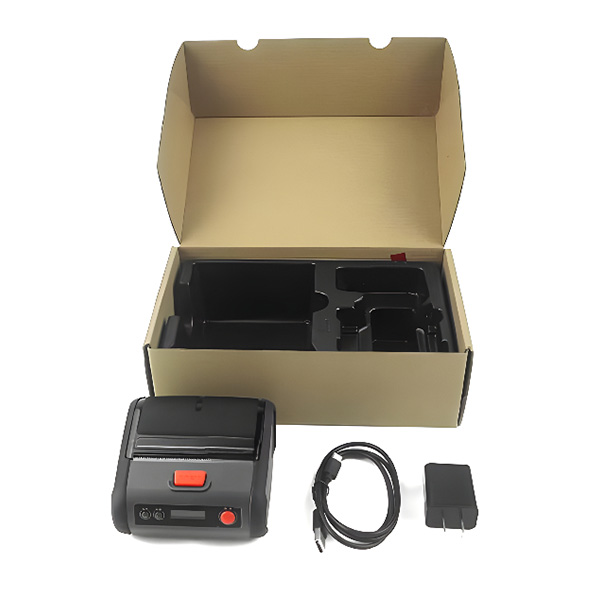

Accessories: | Standard with a power adapter and USB Type-C cable. |
Optional accessories include a belt case / backup battery pack |
