DPT3 Desktop Label Printer_Suzhou Mobydata Smart Systems Co. Ltd.

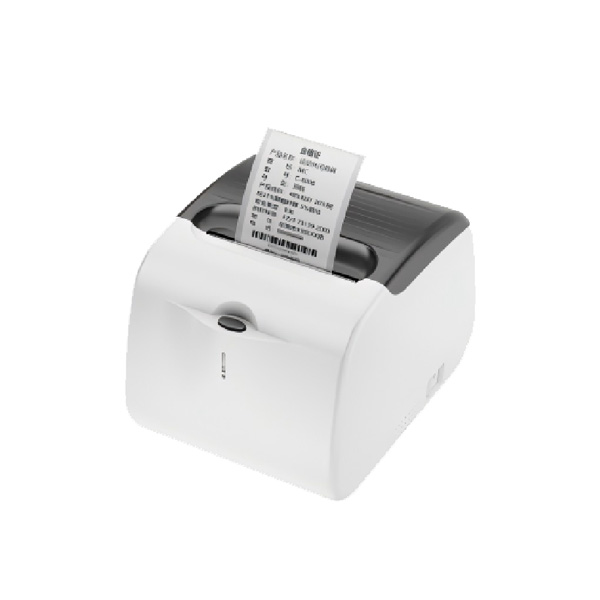

DPT3 Desktop Label Printer

a) Supports automatic printing for enhanced efficiency

b) Compatible with Android and iOS, ideal for mobile workflows

c) 2-in-1 Label & Receipt Printer with Adjustable Width

d) Multiple Interface Options, Plug-and-Play

Item	Project Description	Specifications
Printing	Printing method	Thermal
	Print effective width	72mm
	Print command	ESC/TSPL/CPCL
	Printing speed	150mm/s
	Print density	640dots/line
	character	1616，2424
	Connection method	Android & iOS &Windows
	interface	USB(Standard） USB+Bluetooth（Optional） USB+Bluetooth + Ethernet（Optional）
paper	Paper width	82mm
	Paper type	Thermal type
	Outer diameter of paper roll	≦82mm
	Paper thickness	0.05-0.15mm
	Paper loading method	Easy paper loading structure
	Positioning method	Optical coupling induction
Reliability	Print head Life	100KM
	Mechanical properties	Shockproof
	Paper shortage detection	Optocoupler detection
RAM Memory		320K
ROM Memory		512K
Power adapter		DC24V/1.5A
Size	Dimensions	178136130MM
Size	Outer box size	195180145MM
Working environment		Temperature：0-45℃
Working environment		Humidity：20-90%
Storage environment		Temperature：-10-60℃
Storage environment		Humidity：10-90%（except paper rolls）
